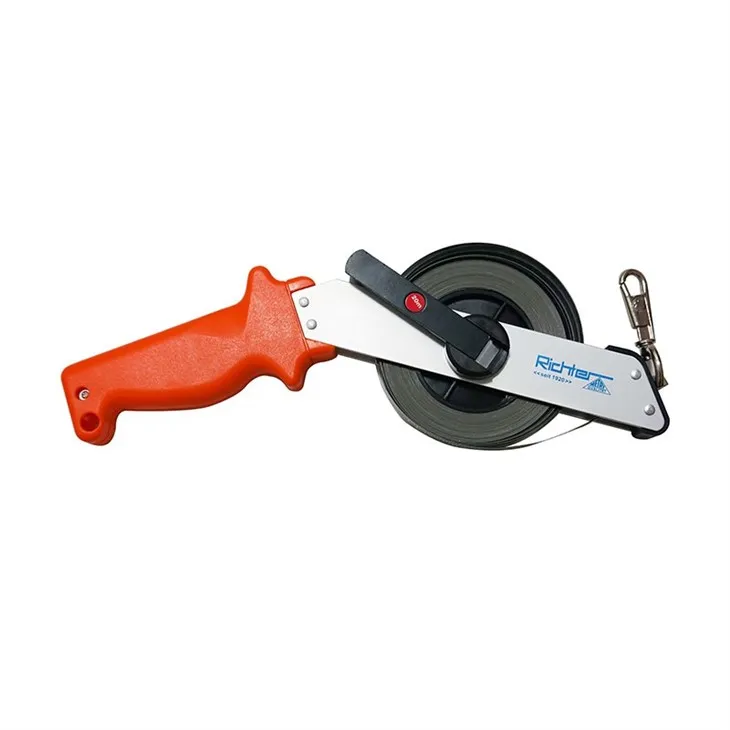

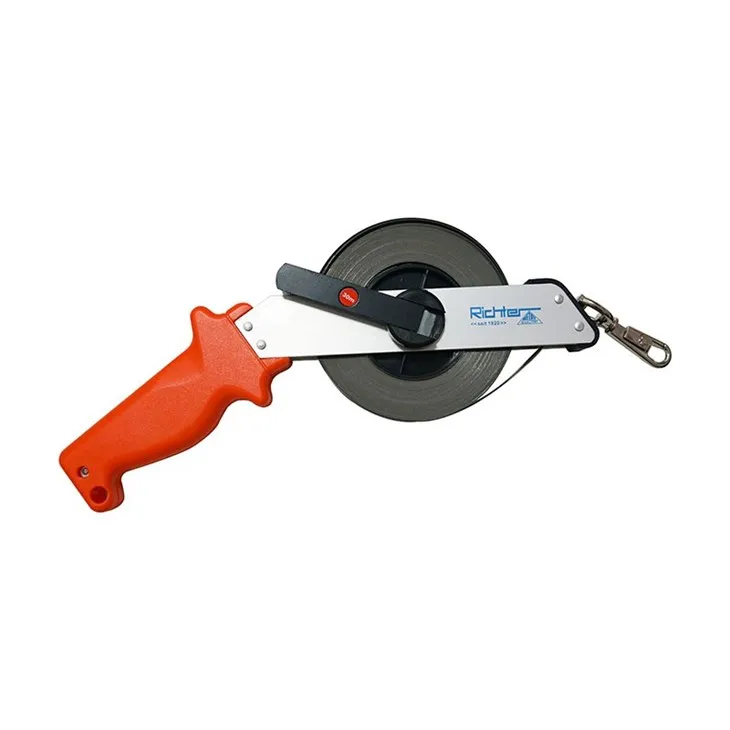

Tape Oil Gauge

The oil gauge tape is composed of handle, ruler frame, rocker handle, measuring ruller, oil drop, locker, oil scraper, bracket and connector.

The scale direction of the ruler is toward the handle.

1. Slide the hook in front of the ruler frame down to hang the oil drop

2. Turn the rocker handle over, hold the oil gauging tape handle in one hand, and hold the rocker handle in one hand

3. Use the rocker handle to control the downward speed of gravity of the oil drop. When the oil drop touches the bottom of the container, hold the handle to extract it upwards, so that the ruler and the oil drop remain upright condition.

4. Read the data of the liquid level at this time. Each oil measurement generally inserted 3 times, subject to the least data.

5. After reading the data, slowly shake the tape into the ruler frame, wipe the tape and the oil drop with a dry cloth, retract the wire, put it in the packaging box after finishing, and use it next time.
